Cause analysis of orifice flowmeter failure,Xi'anHuaheng Instrument Analysis:Orifice flowmeter metering system failure reasons require technicians to be familiar with the performance of the instrument,but also need extensive knowledge and rich field experience for analysis,reasoning,multi-test,in order to confirm.





　　有些故障還是一些意想不到的事件造成的。對非流量計方面的故障往往表現為輸出信號不穩定。根據實際經驗，渦街流量計測量焦?fàn)t煤氣時，輸出信號不穩定的原因有以下幾點：



　　Some failures are caused by unexpected events.For non-flowmeter faults,the output signal is often unstable.According to practical experience,there are several reasons for unstable output signal of vortex flowmeter when measuring coke oven gas.



　　1、渦街流量計不適宜安裝在強振動的場合是應用者廣為熟知的，但在磁場頻繁變化的場合，渦街流量傳感器同樣會受到干擾，測出高于正常值的信號。實踐證明，在無氣體流動的現場，當渦街流量傳感器處于變化的磁場中時在磁場變化的瞬間，渦街流量傳感器會感應出一個錯誤信號輸出，當變化結束，儀表處于一個穩定的磁場時，儀表則會輸出信號正常。



　　1.Vortex flowmeter is not suitable to be installed in the strong vibration situation,which is well known to the applicants.However,when the magnetic field changes frequently,the Vortex flowmeter will also be disturbed and the signal higher than the normal value can be detected.Practice has proved that,in the field without gas flow,when the vortex flow sensor is in the changing magnetic field,at the moment when the magnetic field changes,the vortex flow sensor will induce an error signal output.When the change ends and the instrument is in a stable magnetic field,the output signal of the instrument will be normal.



　　2、焦?fàn)t煤氣因出廠時溫度高，濕度大，因此在氣體輸送過程中會有水分存在。氣體流動帶動水分往復波動，從而形成脈動流。渦街流量傳感器處于這種流體狀態時輸出數據忽大忽小，根本無法反映生產狀況。



　　2.Because of the high temperature and humidity of coke oven gas when it leaves the factory,there will be moisture in the process of gas transmission.Gas flow drives water fluctuation to and fro,thus forming pulsating flow.When the vortex flow sensor is in this fluid state,the output data of the sensor is too big or too small to reflect the production situation at all.



　　3、由于焦?fàn)t煤氣多雜質，易結晶，雜質凝結于傳感頭，從而造成孔板流量計計量失準。溫度升高時，雜質揮發，靈敏度增加，信號增強;相反則降低;從而造成數據不穩定。



　　3.Because of the impurities in coke oven gas,it is easy to crystallize and the impurities condense in the sensor head,which results in the measurement error of orifice plate flowmeter.When the temperature rises,impurity volatilizes,sensitivity increases and signal increases;on the contrary,it decreases,which results in data instability.

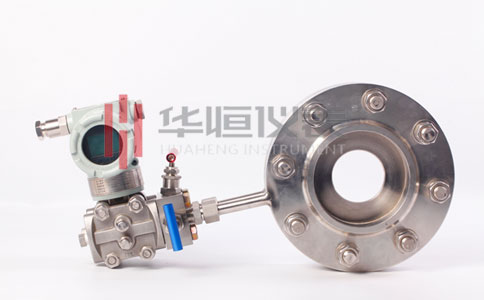

　　孔板流量計按國標規定進行設計、制造和檢定的標準孔板無需實流標定，精度高、結構簡單、制造成本低，但壓力損失在所有標準節流裝置中最大，不適用于要求壓力損失小的情況，標準孔板廣泛用于石油、化工、冶金、電力等行業。



　　The orifice plate flowmeter designed,manufactured and calibrated according to the national standard does not need real-flow calibration.It has high accuracy,simple structure and low manufacturing cost.However,the pressure loss is the largest in all standard throttling devices,and it is not suitable for situations requiring low pressure loss.The standard orifice plate is widely used in petroleum,chemical,metallurgical,power and other industries.
